Yale 2100-36 689

0 Review(s) Write a Review

Your Price: $285.66

List Price:$529.00

You Save:$243.34(46%)

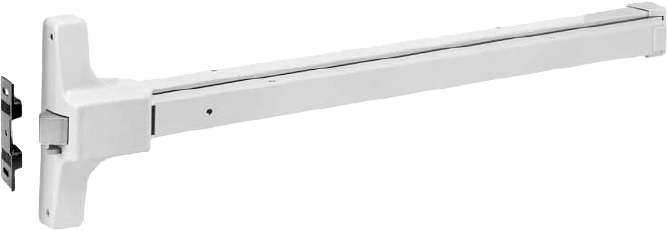

Rim Exit Device, 36", Aluminum

Part Number: YAL_210036689

Availability: In Stock.

Application: Commercial

Quantity

Description
Specifications

Yale 2100-36 689 Exit Device

Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 Series Exit Device is the right choice for meeting the rigors of everyday use. This economy exit device is now available with the Yale SquareBolt rim latch for the toughest applications. In addition to traditional painted finishes, the 2100 Series is available in an attractive satin stainless steel finish for use where aesthetics are also important.

Features the Yale Free Wheeling Lever Mechanism
ANSI / BHMA A156.3 Grade 1
UL Listed for Use on Fire Doors Having a Rating Up to 3 Hours
Designed and Manufactured Under a Certified ISO 9001 Quality System
Limited 1 Year Warranty
ZHEM - Latching hardware
ZHLA- Windstorm rated assemblies
GXHX/GXHX7 - Fire exit hardware (F)(4' x 8' single, 8' x 8' pairs, 3 hr.)
ANSI/BHMA Certified: A156.3 Type 1, Grade 1
UL/cUL Listed: FVSR/FVSR7 - Panic hardware GXHX/GXHX7 - Fire exit hardware (F)(4' x 8' single, 8' x 8' pairs, 3 hr.) ZHEM - Latching hardware ZHLA- Windstorm rated assemblies
FVSR/FVSR7 - Panic hardware

Attributes

Ship via: Can Ship UPS

Alternate Codes: 003280, 143738, 2100-36 689, 2100-36-689, 2100-36IN689, 2100-689-36, 210036689, 210036IN689, 210068936, 286021, YAL2100-36IN689, YAL2100-689-36

Bar Style: Push Bar

Design: Rim

Device Length: 36 In.

Device Type: Rim

Dogging: Hex Key

Dogging Options: Hex Key Dogging

Door Type: Metal, Wood

Door Width: 36"

Exit Device Type: Rim Exit

Finish: 689/US28

Finish Color: Satin Aluminum

Finish Description: Aluminum Painted

Fire Rated: No

Function: Exit Only

Handing: Non-Handed

Includes Trim: No

Physical Appearance: Wide Stile Pushpad

Series: Yale 2100 Series Exit Devices

Strike: 757F Strike

Subtype: Exit Device

Supplier: Yale

Type: Exit Devices
