Product Assemble-to-Order. Lead Time 2-5 days
Ship via: Can Ship UPS
Amp Draw: 500mA Peak, 15mA Holding
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4"
Country of Origin: Usa
Cylinder Type: Conventional Cylinder

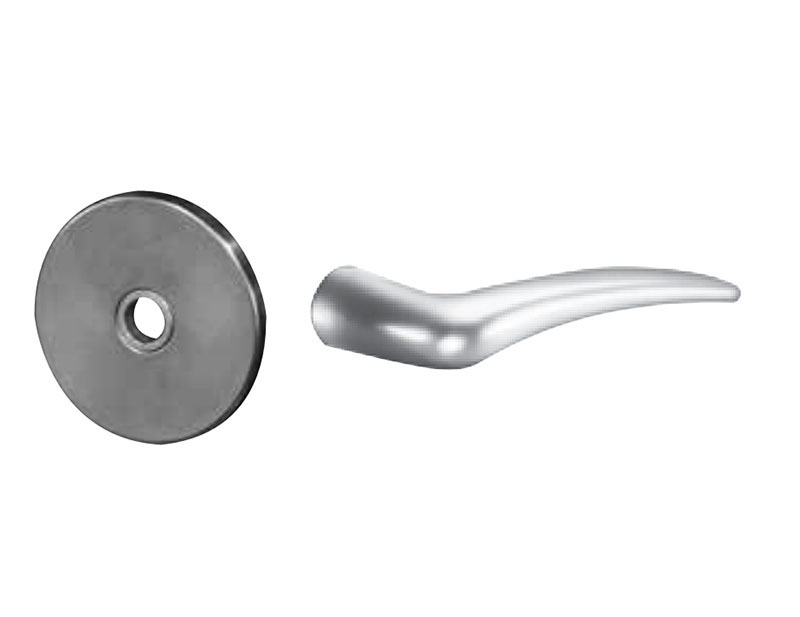

Design: B Lever and L Rose
Door Thickness: 1-3/4"
Finish: 626/US26D
Finish Description: Satin Chrome
Fire Rated: 2 Hours {B}
Function: 72-Electrical Fail Safe
Grade: Grade 1
Hand: Field Reversible
Keying: Keyed Different
Keys: Cut
Keyway: LA
Lever Knob Design: B - Lever
Limited Warranty: 2 Years
Lock Face Size: 8" X 1-1/4"
Num Keys: 2
Num Pins: 6
Operating Voltage: 12VDC/24VDC
Power: Hard Wired
Rose Escutcheon Design: L - Rose
Screws: Combination
Series: 8270 Series Electrified Lever Mortise Locks
Strike: ASA Strike
Strike Height: 4-7/8"
Strike Number: 82-0110
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Electric Mortise Lock
Type: Electric Locks
