Product Assemble-to-Order. Lead Time 2-5 days
Ship via: Can Ship UPS
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4 In. Latch, 1 in. Deadbolt
Country of Origin: Usa
Cylinder Type: Conventional Cylinder

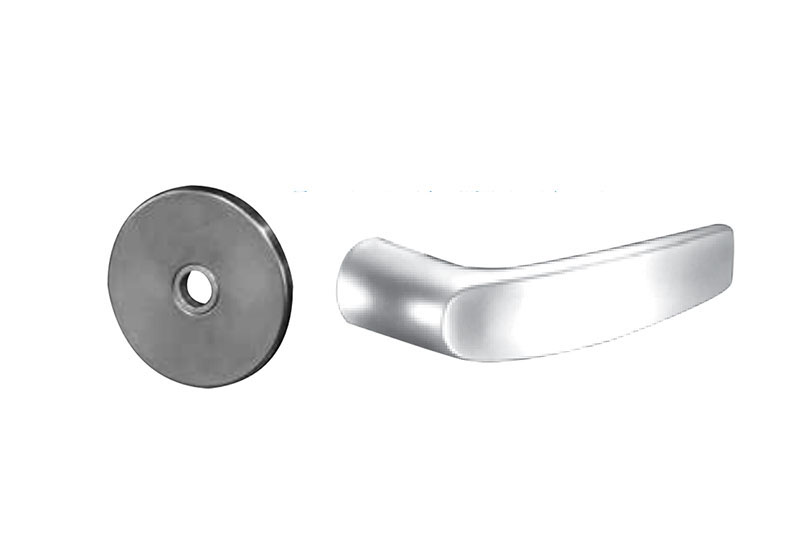

Design: B Lever and L Rose
Door Thickness: 1-3/4 In.
Finish: 626/US26D
Finish Description: Satin Chrome
Fire Rated: 2 Hours {B}
Function: 46-Dormitory or Exit
Grade: Grade 1
Hand: Field Reversible
Keying: Keyed Different
Keys: Cut
Keyway: LA
Latch Backset Dim: 2-3/4 In.
Latch Type: Combination Latch and Bolt
Lever Knob Design: B - Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Num Of Keys: 2
Num Pins: 6
Rose Escutcheon Design: L - Rose
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Strike: ASA Strike
Strike Height: 4-7/8 In.
Strike Number: 82-0110
Strike Type: ASA Strike
Strike Width: 1-1/4 In.

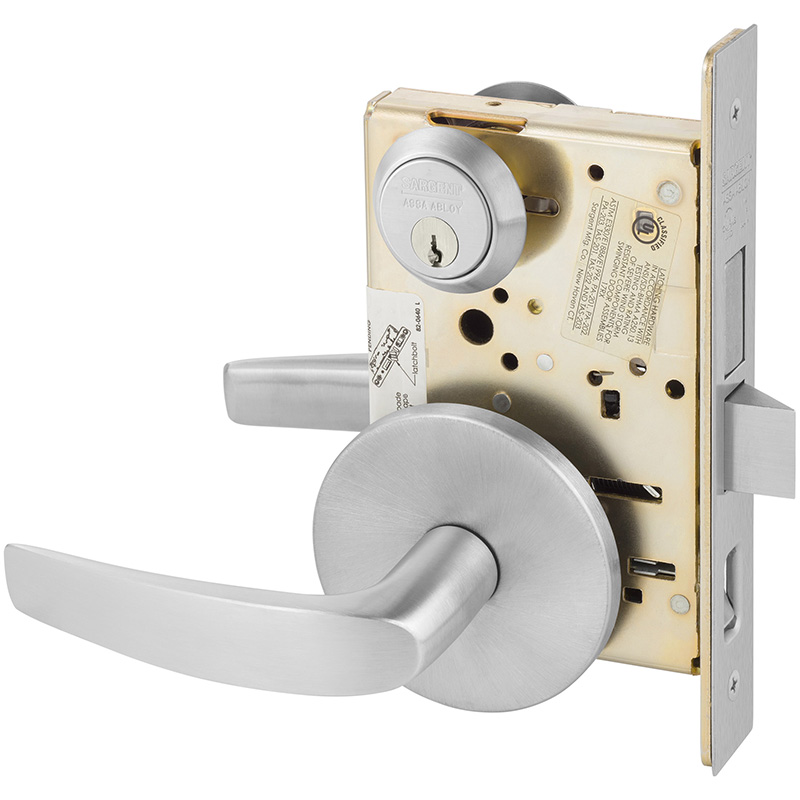

Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
