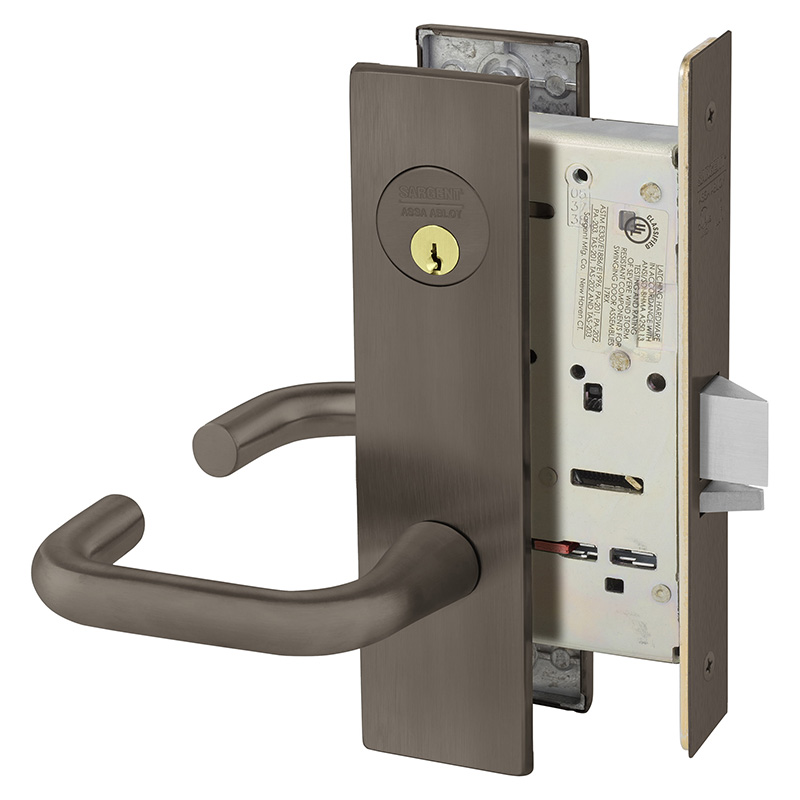

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Attributes
Ship via: Can Ship UPS
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 3/4 In. Latch
Country of Origin: Usa
Cylinder Type: Conventional Cylinder
Design: J Lever and LE1 Escutcheon
Door Thickness: 1-3/4 In.
Finish: 613/US10B
Finish Description: Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 2 Hours {B}
Function: 04-Storeroom or Closet
Grade: Grade 1
Hand: Field Reversible
Keying: Keyed Different
Keys: Cut
Keyway: LA
Latch Backset Dim: 2-3/4 In.
Latch Type: Dead Latch (Guarded)
Lever Knob Design: J - Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Num Of Keys: 2
Num Pins: 6
Rose Escutcheon Design: LE1 - Escutcheon
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Strike: ASA Strike
Strike Height: 4-7/8 In.
Strike Number: 82-0110
Strike Type: ASA Strike
Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
