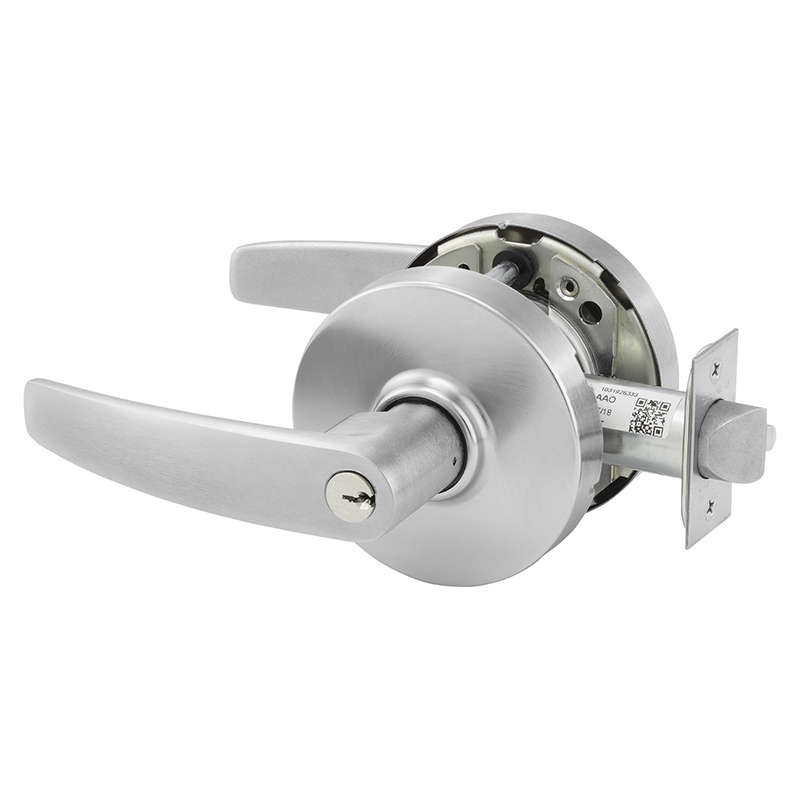

Sargent 2810G05LB26D Office Cylindrical Lock Grade 1 with B Lever and L Rose and ASA Strike Satin Chrome Finish
Attributes
Ship via: Can Ship UPS
Ansi Function: F81 - Office
Ansi Function Description: F81 - Office
Application: CM
Baa Qualified: Yes
Backset: 2-3/4" Backset
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8"
Clazz: SG
Color: Satin Chrome
Country of Origin: Usa
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Cylinders Present: Yes
Design: B Lever and L Rose
Door Thickness: 1-3/4 In. - 2 In.
Dust Box: None
Finish: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 05-Entrance or Office
Grade: Grade 1
Hand: Not Handed
Item Class Description: Office Cylindrical Lock Grade 1 with B Lever and L Rose and ASA Strike
Item Type Keyword: Cylindrical
Keying: Keyed Different
Keying Option: Keyed Different
Keys: 2
Keyway: LA
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Number: 10-3192
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: L - Lever
Lever Knob Design Name: B
Limited Warranty: 7 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: 5
Manufacturer Function Description: Entrance or Office
Maximum Door Thickness: 2"
Minimum Door Thickness: 1-3/4"
Num Of Keys: 2
Num Pins: 6
Number Of Inners: 1
Number Of Pins: 6 Pin Keyway
Projection: 2-1/2"
Rose Escutcheon: L Rose
Rose Escutcheon Design: B - Rose
Rose Escutcheon Dimensions: 3-1/2"
Screws: Combination
Series: 10 Series
Strike: ASA Strike
Strike Dimensions: 4-7/8"
Strike Height: 4-7/8 In.
Strike Number: 808
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: Conventional Cylinder
Structure Function: 05-Entrance or Office Lock
Structure Handing: Not Handed
Structure Inside Finish: 626/US26D
Structure Inside Rose: L - L Rose
Structure Inside Trim: B - B Lever
Structure Keying Option: Keyed Different
Structure Keyway: LA
Structure Latch: Dead Latch (Guarded)
Structure Latch Number: Oct-22
Structure Outside Finish: 626/US26D
Structure Outside Rose: L - L Rose
Structure Outside Trim: B - B Lever
Structure Series: 10-Line
Structure Strike Number: 808
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
