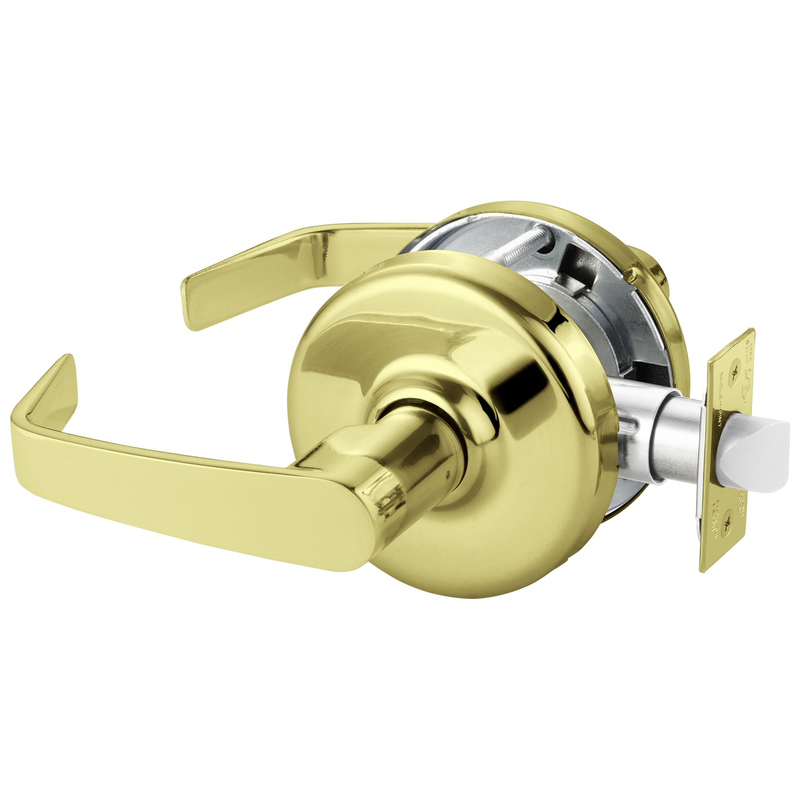

Corbin CL3810NZD605 Zinc Newport Lever and D Rose Passage Grade 2 Standard Duty Lever Lock Bright Brass Finish
Attributes
Ship via: Can Ship UPS
Ansi Function: F75 - Passage
Backset: 2-3/4" Backset
Bolt Protection: 1/2"
Bore Hole Diameter: 2-1/8"
Country of Origin: Usa
Cylinder Type: Non-keyed
Cylinders Present: Non-keyed
Design: Zinc Newport Lever and D Rose
Door Thickness: 1-3/8" - 1-3/4"
Finish: Bright Brass
Finish Description: Bright Brass
Fire Rated: 3 Hours {A}
Function: 10-Passage or Closet
Function Family: Passage
Grade: Grade 2
Hand: Not Handed
Latch Backset Dim: 2-3/4"
Latch Bore Diameter: 1"
Latch Number: 600F09
Latch Type: Spring Latch (Unguarded)
Lever Knob: Lever
Lever Knob Design: NZ - Newport
Lever Knob Design Family: Return Lever
Lever Knob Design Name: Newport
Limited Warranty: 7 Years
Lock Face Size: 2-1/4" x 1-1/8"
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/8"
Rose Escutcheon: Rose
Rose Escutcheon Design: D - Rose
Rose Number: D
Screws: Combination
Series: CL3800 Series
Strike: ANSI Curved Lip Strike
Strike Height: 4-7/8"
Strike Number: 217L13
Strike Type: ASA
Strike Width: 1-1/4"
Structure Function: 10
Structure Outside Finish: 605/US3
Structure Outside Rose: D
Structure Outside Trim: NZ
Structure Series: CL38
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
